歴代のOFRAC車両の外観とスペックです。詳しい車両の写真はギャラリーのページからご覧ください。

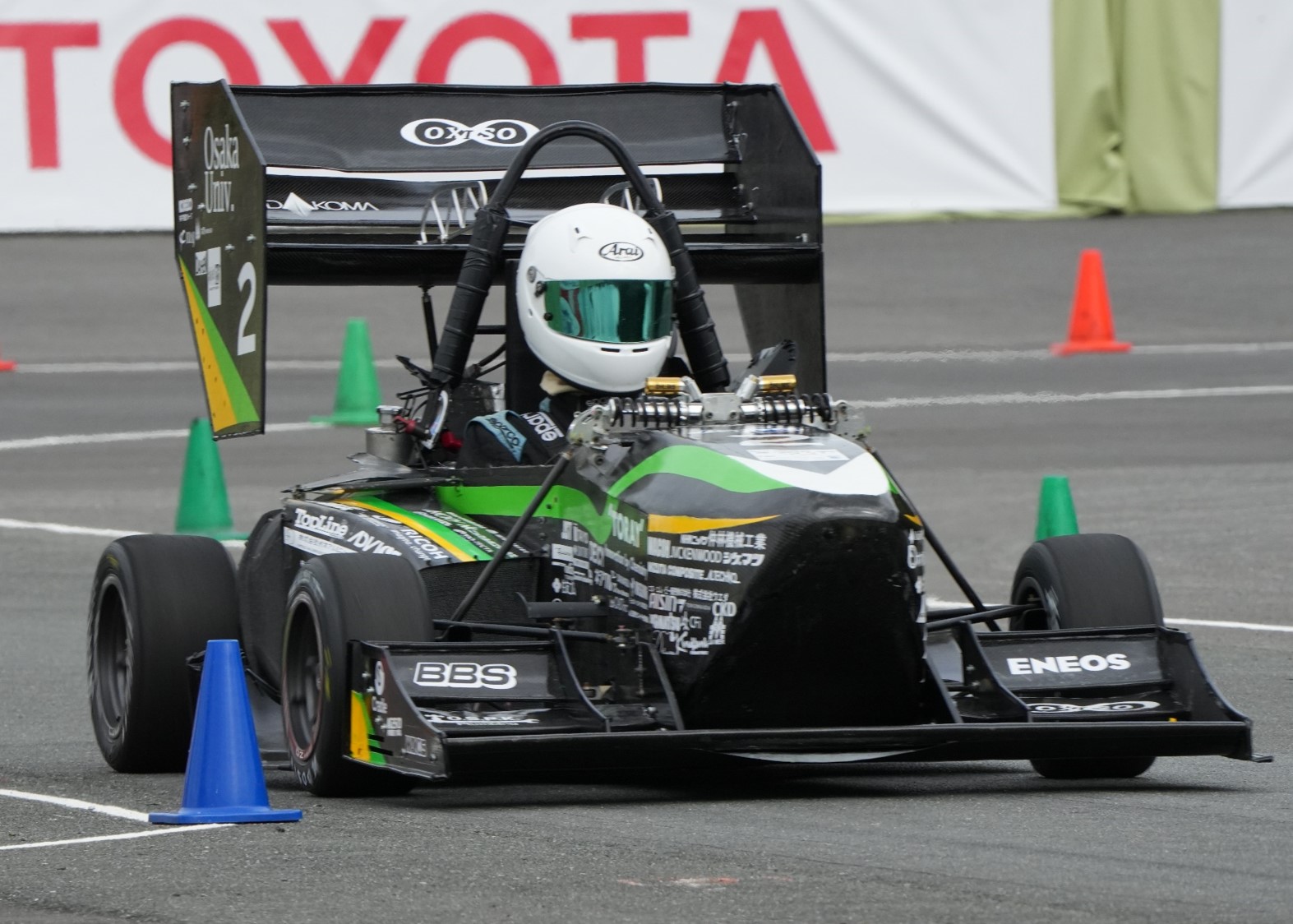

2022年度マシン

Dimensions
Overall Length×Width×Height 2875 mm×1440 mm×1200 mm
Wheelbase 1600 mm
Track [front] 1250 mm
Track [rear] 1210 mm
Mass w/o driver 208 kg
Powertrain
Engine KAWASAKI ZX636E (636cc/inline 4)
Induction NA
MAX Power 76hp/11500RPM
MAX Torque 6.4kgm/8000RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 16.0×6.0-10,LC0,Hoosier
Tire sizes and Compound Type [rear] 16.0×6.0-10,LC0,Hoosier
Wheels [front] 7 inch wide, 1pc Mg Rim(OZ Racing), +22mm offset
Wheels [rear] 7 inch wide, 1pc Mg Rim(OZ Racing), +22mm offset
Features
CFRP Front Monocoque, Paddle Shift, Adjustable LSD, Clutchless Shifting(Auto Blipping) with Electrical Throttle Control, Pneumatic Shifter, Center Lock Magnesium Wheels, CFRP Suspension Rods


2021年度マシン

Dimensions
Overall Length×Width×Height 2975 mm×1460 mm×1178 mm
Wheelbase 1650 mm
Track [front] 1270 mm
Track [rear] 1230 mm
Mass w/o driver 205 kg
Powertrain
Engine KAWASAKI ZX636E (636cc/inline 4)
Induction NA
MAX Power 76hp/11500RPM
MAX Torque 6.4kgm/8000RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 16.0×6.0-10,LC0,Hoosier
Tire sizes and Compound Type [rear] 16.0×6.0-10,LC0,Hoosier
Wheels [front] 7 inch wide, 1pc Mg Rim(OZ Racing), +22mm offset
Wheels [rear] 7 inch wide, 1pc Mg Rim(OZ Racing), +22mm offset
Features
Clutchless Shifting(Auto Blipping) with Electrical Throttle Control, Pneumatic Shifter, Center Lock Magnesium Wheels, CFRP Suspension Rods


2019年度マシン

Dimensions
Overall Length×Width×Height 2926 mm×1464 mm×1134 mm
Wheelbase 1575 mm
Track [front] 1270 mm
Track [rear] 1230 mm
Mass w/o driver 208 kg
Powertrain
Engine KAWASAKI ZX636E (636cc/inline 4)
Induction NA
MAX Power 76hp/11500RPM
MAX Torque 6.4kgm/8000RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 16.0×6.0-10,LC0,Hoosier
Tire sizes and Compound Type [rear] 16.0×6.0-10,LC0,Hoosier
Wheels [front] 7 inch wide, 1pc Mg Rim(OZ Racing), +22mm offset
Wheels [rear] 7 inch wide, 1pc Mg Rim(OZ Racing), +22mm offset
Features
Clutchless Shifting(Auto Blipping) with Electrical Throttle Control, Pneumatic Shifter, Center Lock Magnesium Wheels, CFRP Suspension Rods

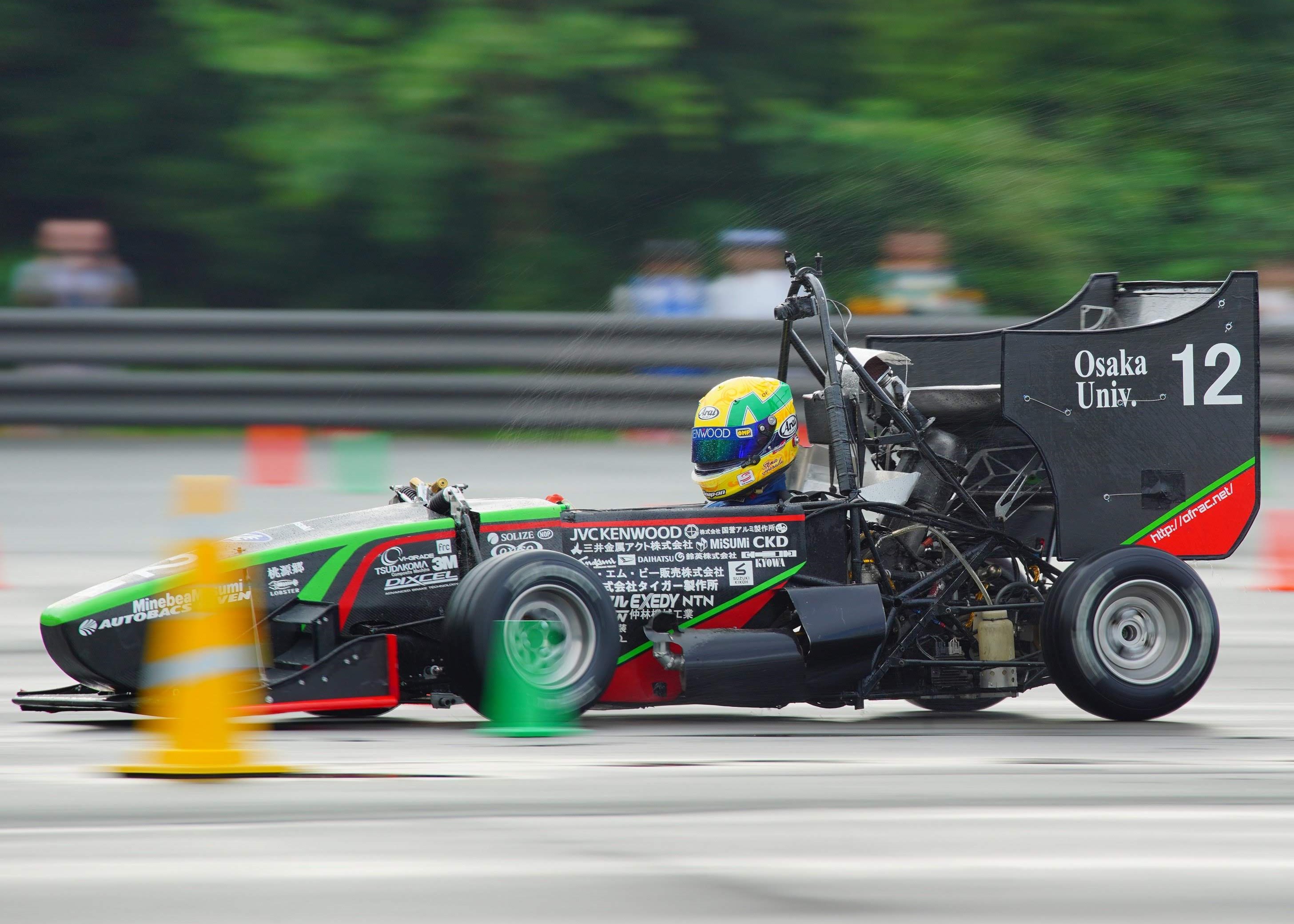

2018年度マシン

Dimensions
Overall Length×Width×Height 3285 mm×1580 mm×1170 mm
Wheelbase 1700 mm
Track [front] 1350 mm
Track [rear] 1300 mm
Mass w/o driver 230 kg
Powertrain
Engine KAWASAKI ZX636E (636cc/inline 4)
Induction NA
MAX Power 85hp/12500RPM
MAX Torque 6.5kgm/8000RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 18.0×7.5-10,R25B,Hoosier
Tire sizes and Compound Type [rear] 18.0×7.5-10,R25B,Hoosier
Wheels [front] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +1.1mm offset
Wheels [rear] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), -27.3mm offset
Features
Valiable Intake Control, Pneumatic Shifter


2017年度マシン

Dimensions
Overall Length×Width×Height 3120 mm×1445 mm×1190 mm
Wheelbase 1620 mm
Track [front] 1250 mm
Track [rear] 1200 mm
Mass w/o driver 235 kg
Powertrain
Engine KAWASAKI ZX636E (636cc/inline 4)
Induction NA
MAX Power 86hp/12500RPM
MAX Torque 6.4kgm/8000RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 18.0×7.5-10,R25B,Hoosier
Tire sizes and Compound Type [rear] 18.0×7.5-10,R25B,Hoosier
Wheels [front] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +1.1mm offset
Wheels [rear] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), -27.3mm offset
Features
Valiable Intake Control, Pneumatic Shifter, Semi Unsprung Mount Wing


2016年度マシン

Dimensions
Overall Length×Width×Height 3000 mm×1225 mm×1190 mm
Wheelbase 1620 mm
Track [front] 1225 mm
Track [rear] 1175 mm
Mass w/o driver 220 kg
Powertrain
Engine KAWASAKI ZX6R9F (599cc/inline 4)
Induction NA
MAX Power 89hp/12000RPM
MAX Torque 6.5kgm/9000RPM
Supension
Suspension Type [front] Double wishbone/Pull rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 18.0×7.5-10,R25B,Hoosier
Tire sizes and Compound Type [rear] 18.0×7.5-10,R25B,Hoosier
Wheels [front] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +38.1mm offset
Wheels [rear] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +12.7mm offset
Features
Auto Clutch System, Pneumatic Shifter, 3D Shape Rear Wing

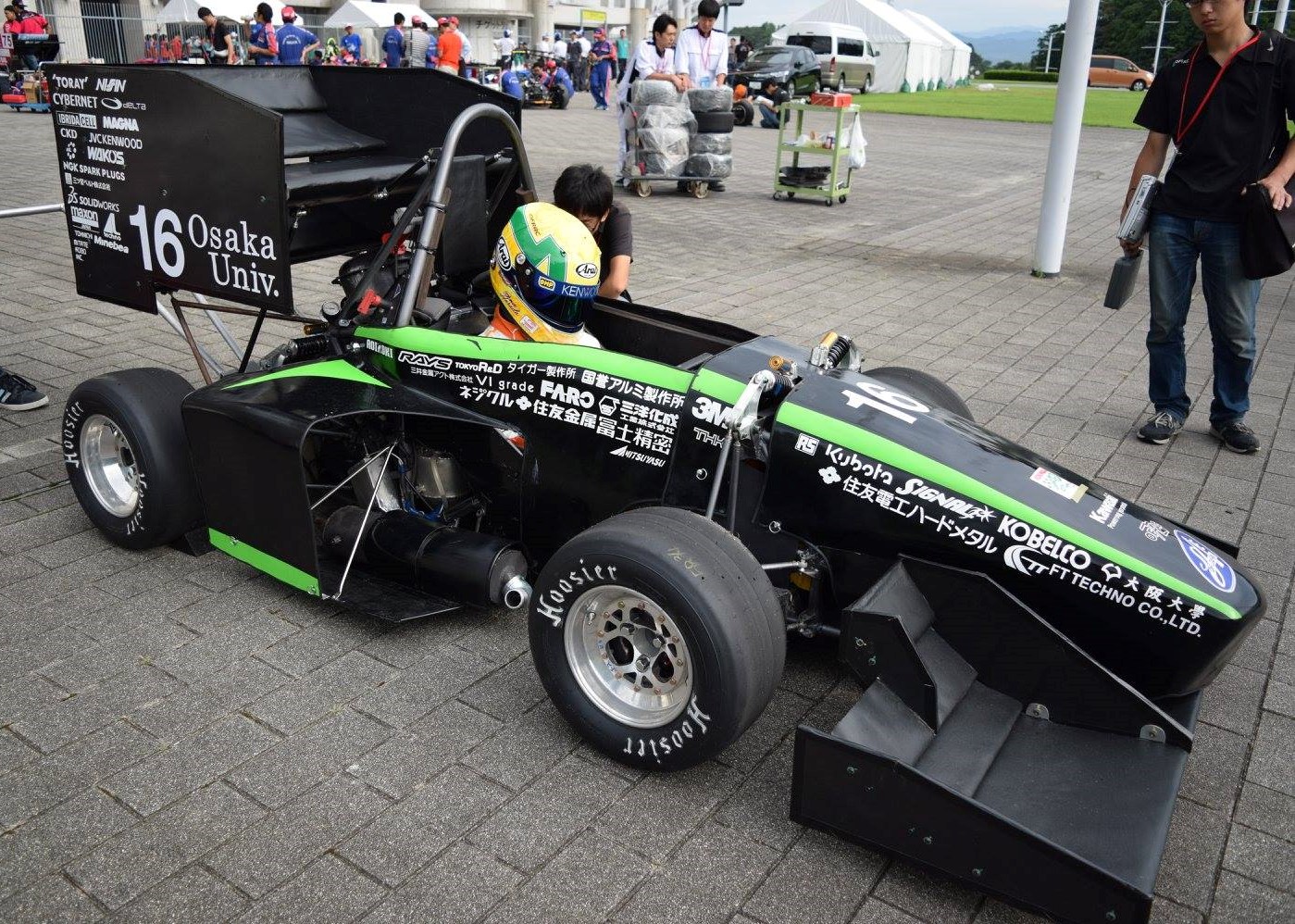

2015年度マシン

Dimensions
Overall Length×Width×Height 2978 mm×1441 mm×1190 mm
Wheelbase 1590 mm
Track [front] 1250 mm
Track [rear] 1200 mm
Mass w/o driver 212 kg
Powertrain
Engine KAWASAKI ZX6R9F (599cc/inline 4)
Induction NA
MAX Power 89hp/11000RPM
MAX Torque 6.6kgm/9500RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 18.0×7.5-10,R25B,Hoosier
Tire sizes and Compound Type [rear] 18.0×7.5-10,R25B,Hoosier
Wheels [front] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +38.1mm offset
Wheels [rear] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +12.7mm offset
Features
Valiable Intake Control, Auto Clutch System, Pneumatic Shifter


2014年度マシン

Dimensions
Overall Length×Width×Height 3050 mm×1446 mm×1347 mm
Wheelbase 1590 mm
Track [front] 1225 mm
Track [rear] 1175 mm
Mass w/o driver 217 kg
Powertrain
Engine KAWASAKI ZX6R9F (599cc/inline 4)
Induction NA
MAX Power design RPM 11500
MAX Torque design RPM 9000
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 18.0×7.5-10,R25B,Hoosier
Tire sizes and Compound Type [rear] 18.0×7.5-10,R25B,Hoosier
Wheels [front] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +38.1mm offset
Wheels [rear] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +12.7mm offset
Features
Valiable Intake Control, Pneumatic Shifter, Drag Reduction System, Unsprung Mount Wing

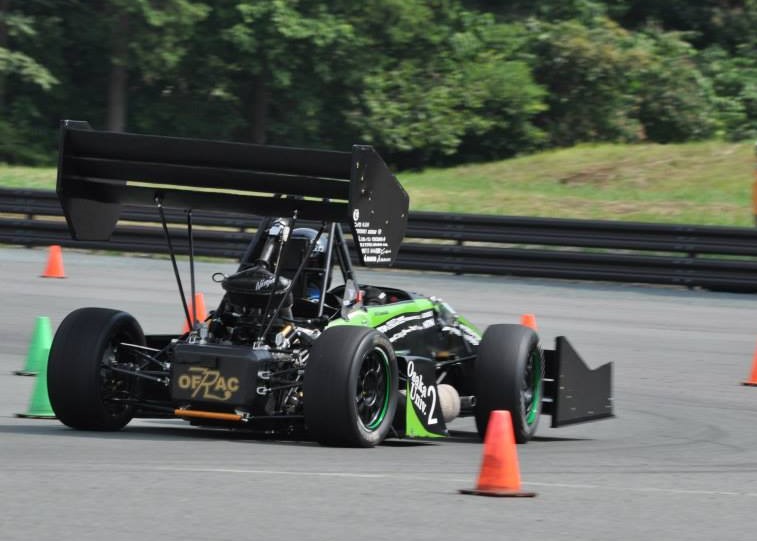

2013年度マシン

Dimensions
Overall Length×Width×Height 2847 mm×1405 mm×1270 mm
Wheelbase 1560 mm
Track [front] 1225 mm
Track [rear] 1175 mm
Mass w/o driver 221 kg
Powertrain
Engine KAWASAKI ZX6R9F (599cc/inline 4)
Induction NA
MAX Power design RPM 12000
MAX Torque design RPM 8500
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 20.5×7.0-13,R25B,Hoosier
Tire sizes and Compound Type [rear] 20.0×7.5-13,R25B,Hoosier
Wheels [front] 7 inch wide, 1pc forged Al Rim(OZ Racing), -22mm offset
Wheels [rear] 7 inch wide, 1pc forged Al Rim(OZ Racing), -22mm offset
Features
Valiable Intake Control, Pneumatic Shifter, CFRP Monocoque(Rear Section), Wings(first year)


2012年度マシン

Dimensions
Overall Length×Width×Height 2690 mm×1420 mm×1095 mm
Wheelbase 1530 mm
Track [front] 1225 mm
Track [rear] 1180 mm
Mass w/o driver - kg
Powertrain
Engine KAWASAKI ZX600P7F (599cc/inline 4)
Induction NA
MAX Power design RPM -
MAX Torque design RPM -
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 20.5×7.0-13,R25B,Hoosier
Tire sizes and Compound Type [rear] 20.0×7.5-13,R25B,Hoosier
Wheels [front] 7 inch wide, 1pc forged Al Rim(OZ Racing), -22mm offset
Wheels [rear] 7 inch wide, 1pc forged Al Rim(OZ Racing), -22mm offset
Features
Valiable Intake Control, Valiable Surge Tank Capacity System, Pneumatic Shifter

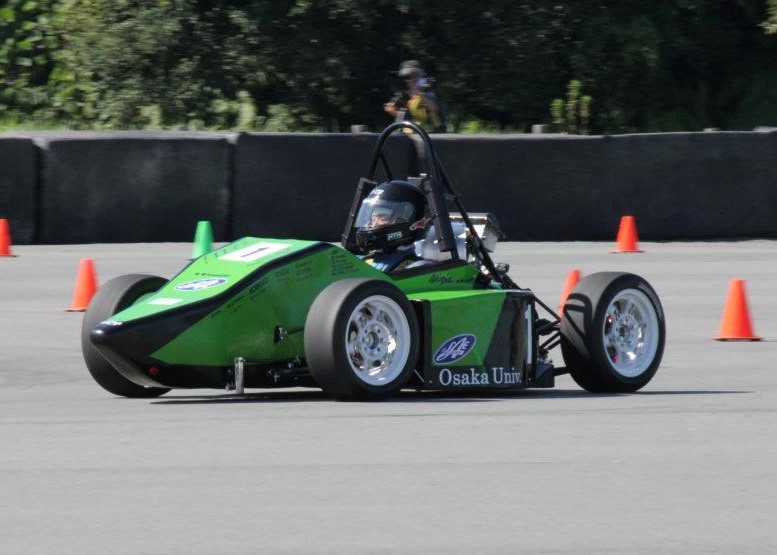

2011年度マシン

Dimensions
Overall Length×Width×Height 2770 mm×1380 mm×1140 mm
Wheelbase 1600 mm
Track [front] 1200 mm
Track [rear] 1200 mm
Mass w/o driver 215 kg
Powertrain
Engine KAWASAKI ZX600P7F (599cc/inline 4)
Induction NA
MAX Power 89hp/12500RPM
MAX Torque 6.6kgm/7000RPM
Supension
Suspension Type [front] Double wishbone/Pull rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] RAS 180/510-13 DR8,BRIDGESTONE
Tire sizes and Compound Type [rear] RAS 180/510-13 DR8,BRIDGESTONE
Wheels [front] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Wheels [rear] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Features
Valiable Intake Control


2010年度マシン

Dimensions
Overall Length×Width×Height 2610 mm×1380 mm×1140 mm
Wheelbase 1600 mm
Track [front] 1200 mm
Track [rear] 1200 mm
Mass w/o driver 220 kg
Powertrain
Engine KAWASAKI ZX600P7F (599cc/inline 4)
Induction NA
MAX Power 89hp/12500RPM
MAX Torque 6.6kgm/9000RPM
Supension
Suspension Type [front] Double wishbone/Pull rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] RAS 180/510-13 DR8,BRIDGESTONE
Tire sizes and Compound Type [rear] RAS 180/510-13 DR8,BRIDGESTONE
Wheels [front] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Wheels [rear] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Features

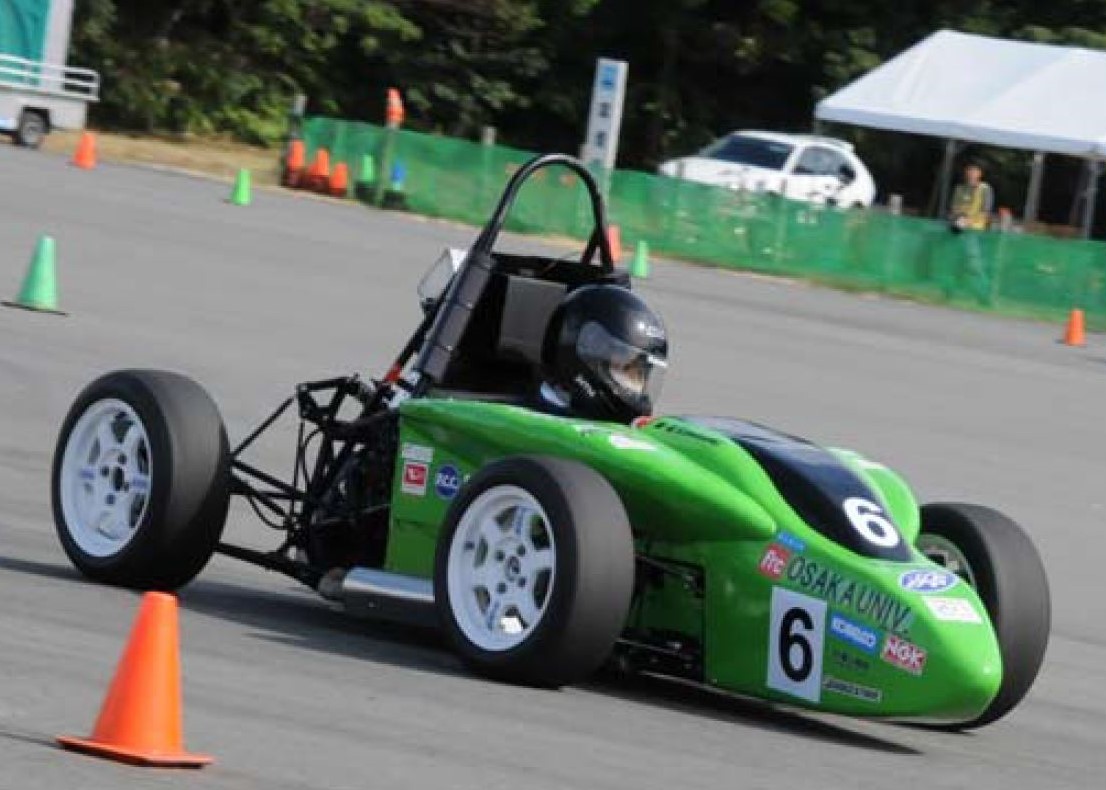

2009年度マシン

Dimensions
Overall Length×Width×Height 2760 mm×1380 mm×1150 mm
Wheelbase 1600 mm
Track [front] 1200 mm
Track [rear] 1200 mm
Mass w/o driver 230 kg
Powertrain
Engine KAWASAKI ZX600P7F (599cc/inline 4)
Induction NA
MAX Power design RPM 11500
MAX Torque design RPM 7500
Supension
Suspension Type [front] Double wishbone/Pull rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] RAS 180/510-13 DR8,BRIDGESTONE
Tire sizes and Compound Type [rear] RAS 180/510-13 DR8,BRIDGESTONE
Wheels [front] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Wheels [rear] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Features


2008年度マシン

Dimensions
Overall Length×Width×Height 2810 mm×1380 mm×1150 mm
Wheelbase 1680 mm
Track [front] 1200 mm
Track [rear] 1200 mm
Mass w/o driver 225 kg
Powertrain
Engine KAWASAKI ZX600P7F (599cc/inline 4)
Induction NA
MAX Power design RPM 9500
MAX Torque design RPM 8000
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] RAS 180/510-13 DR8,BRIDGESTONE
Tire sizes and Compound Type [rear] RAS 180/510-13 DR8,BRIDGESTONE
Wheels [front] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Wheels [rear] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Features


2007年度マシン

Dimensions
Overall Length×Width×Height 2900 mm×1400 mm×995 mm
Wheelbase 1680 mm
Track [front] 1200 mm
Track [rear] 1200 mm
Mass w/o driver - kg
Powertrain
Engine KAWASAKI KVF-650 CVT (609cc/V2)
Induction NA
MAX Power design RPM 4800
MAX Torque design RPM 4780
Supension
Suspension Type [front] Double wishbone/Pull rod
Suspension Type [rear] Double wishbone/Pull rod
Tire sizes and Compound Type [front] RAS 180/510-13 DR8,BRIDGESTONE
Tire sizes and Compound Type [rear] RAS 180/510-13 DR8,BRIDGESTONE
Wheels [front] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Wheels [rear] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Features


2006年度マシン

Dimensions
Overall Length×Width×Height 2600 mm×1375 mm×1075 mm
Wheelbase 1680 mm
Track [front] 1200 mm
Track [rear] 1200 mm
Mass w/o driver 236 kg
Powertrain
Engine KAWASAKI KVF-650 CVT (609cc/V2)
Induction NA
MAX Power design RPM 4800
MAX Torque design RPM 4780
Supension
Suspension Type [front] Double wishbone/Pull rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 20.0×7.5-13,R25A,Hoosier
Tire sizes and Compound Type [rear] 20.0×7.5-13,R25A,Hoosier
Wheels [front] 13 inch 5.5J, 1pc Al Rim(RAYS VOLKRACING), +45mm offset
Wheels [rear] 13 inch 5.5J, 1pc Al Rim(RAYS VOLKRACING), +45mm offset
Features

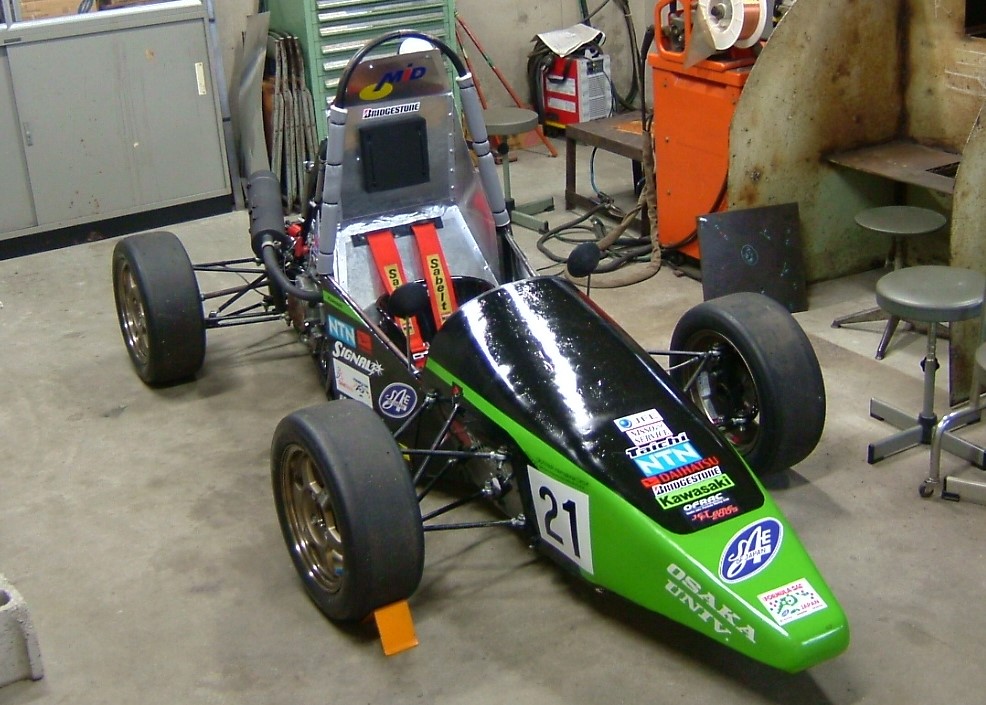

2005年度マシン

Dimensions
Overall Length×Width×Height 2415 mm×1375 mm×1225 mm
Wheelbase 1700 mm
Track [front] 1200 mm
Track [rear] 1200 mm
Mass w/o driver 235 kg
Powertrain
Engine KAWASAKI KVF-650 CVT (609cc/V2)
Induction NA
MAX Power 30hp/4000RPM
MAX Torque 6.5kgm/3500RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 180/510 R13, BRIDGESTONE
Tire sizes and Compound Type [rear] 180/510 R13, BRIDGESTONE
Wheels [front] 13 inch 5.5J, 1pc Al Rim(RAYS VOLKRACING), +45mm offset
Wheels [rear] 13 inch 5.5J, 1pc Al Rim(RAYS VOLKRACING), +45mm offset
Features


2004年度マシン

Dimensions
Overall Length×Width×Height 3050 mm×1200 mm×1170 mm
Wheelbase 1700 mm
Track [front] 1200 mm
Track [rear] 1190 mm
Mass w/o driver 370 kg
Powertrain
Engine KAWASAKI KVF-650 CVT (609cc/V2)
Induction NA
MAX Power 43hp/6500RPM
MAX Torque 5.4kgm/5000RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/?
Tire sizes and Compound Type [front] 175×60×13 GGG
Tire sizes and Compound Type [rear] 175×60×13 GGG
Wheels [front] 13 inch wide, 1pc Al Rim, -40mm offset
Wheels [rear] 13 inch wide, 1pc Al Rim, -40mm offset
Features


2003年度マシン

Dimensions
Overall Length×Width×Height - mm×- mm×- mm
Wheelbase - mm
Track [front] - mm
Track [rear] - mm
Mass w/o driver - kg
Powertrain
Engine KAWASAKI KVF-650 CVT (609cc/V2)?
Induction NA
MAX Power -
MAX Torque -
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Pushrod
Tire sizes and Compound Type [front] -
Tire sizes and Compound Type [rear] -
Wheels [front] -
Wheels [rear] -
Features


OFRAC
OFRAC

SPEC


歴代のOFRAC車両の外観とスペックです。詳しい車両の写真はギャラリーのページからご覧ください。

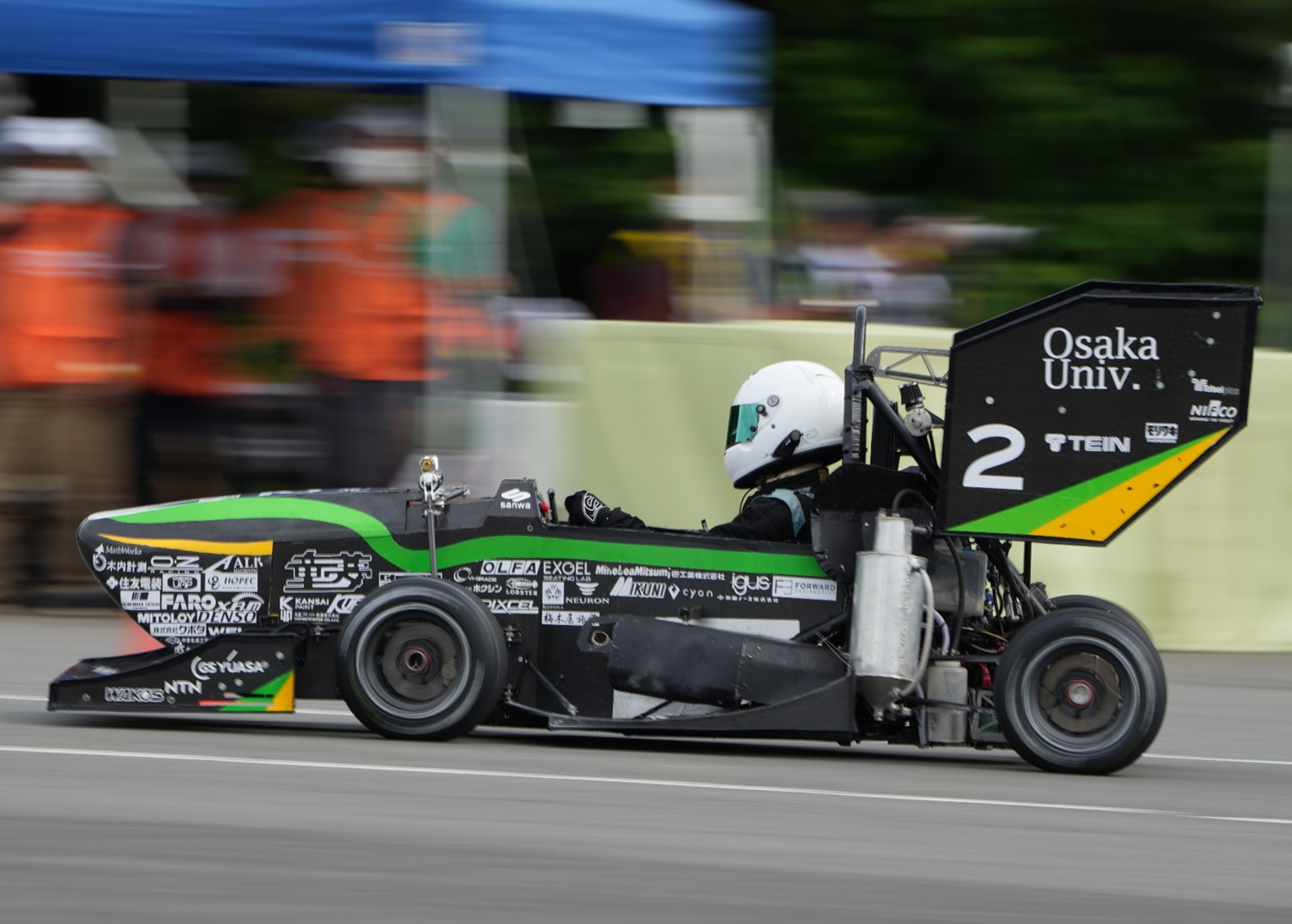

2022年度マシン

Dimensions
Overall L×W×H 2875 mm×1440 mm×1200 mm
Wheelbase 1600 mm
Track [front] 1250 mm
Track [rear] 1210 mm
Mass w/o driver 208 kg
Powertrain
Engine KAWASAKI ZX636E (636cc/inline 4)
Induction NA
MAX Power 76hp/11500RPM
MAX Torque 6.4kgm/8000RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 16.0×6.0-10,LC0,Hoosier
Tire sizes and Compound Type [rear] 16.0×6.0-10,LC0,Hoosier
Wheels [front] 7 inch wide, 1pc Mg Rim(OZ Racing), +22mm offset
Wheels [rear] 7 inch wide, 1pc Mg Rim(OZ Racing), +22mm offset
Features
CFRP Front Monocoque, Paddle Shift, Adjustable LSD, Clutchless Shifting(Auto Blipping) with Electrical Throttle Control, Pneumatic Shifter, Center Lock Magnesium Wheels, CFRP Suspension Rods

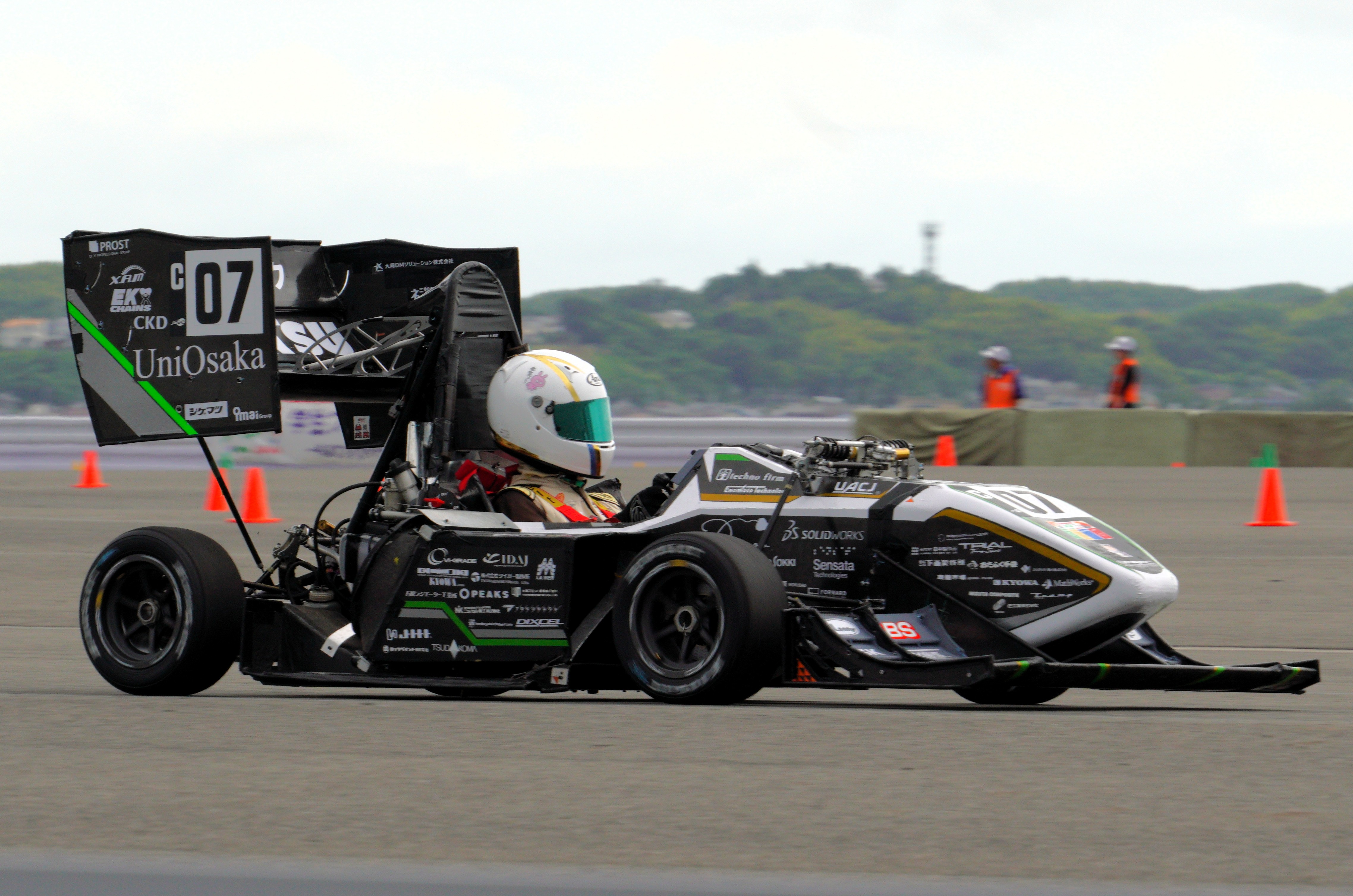

2021年度マシン

Dimensions
Overall L×W×H 2975 mm×1460 mm×1178 mm
Wheelbase 1650 mm
Track [front] 1270 mm
Track [rear] 1230 mm
Mass w/o driver 205 kg
Powertrain
Engine KAWASAKI ZX636E (636cc/inline 4)
Induction NA
MAX Power 76hp/11500RPM
MAX Torque 6.4kgm/8000RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 16.0×6.0-10,LC0,Hoosier
Tire sizes and Compound Type [rear] 16.0×6.0-10,LC0,Hoosier
Wheels [front] 7 inch wide, 1pc Mg Rim(OZ Racing), +22mm offset
Wheels [rear] 7 inch wide, 1pc Mg Rim(OZ Racing), +22mm offset
Features
Clutchless Shifting(Auto Blipping) with Electrical Throttle Control, Pneumatic Shifter, Center Lock Magnesium Wheels, CFRP Suspension Rods

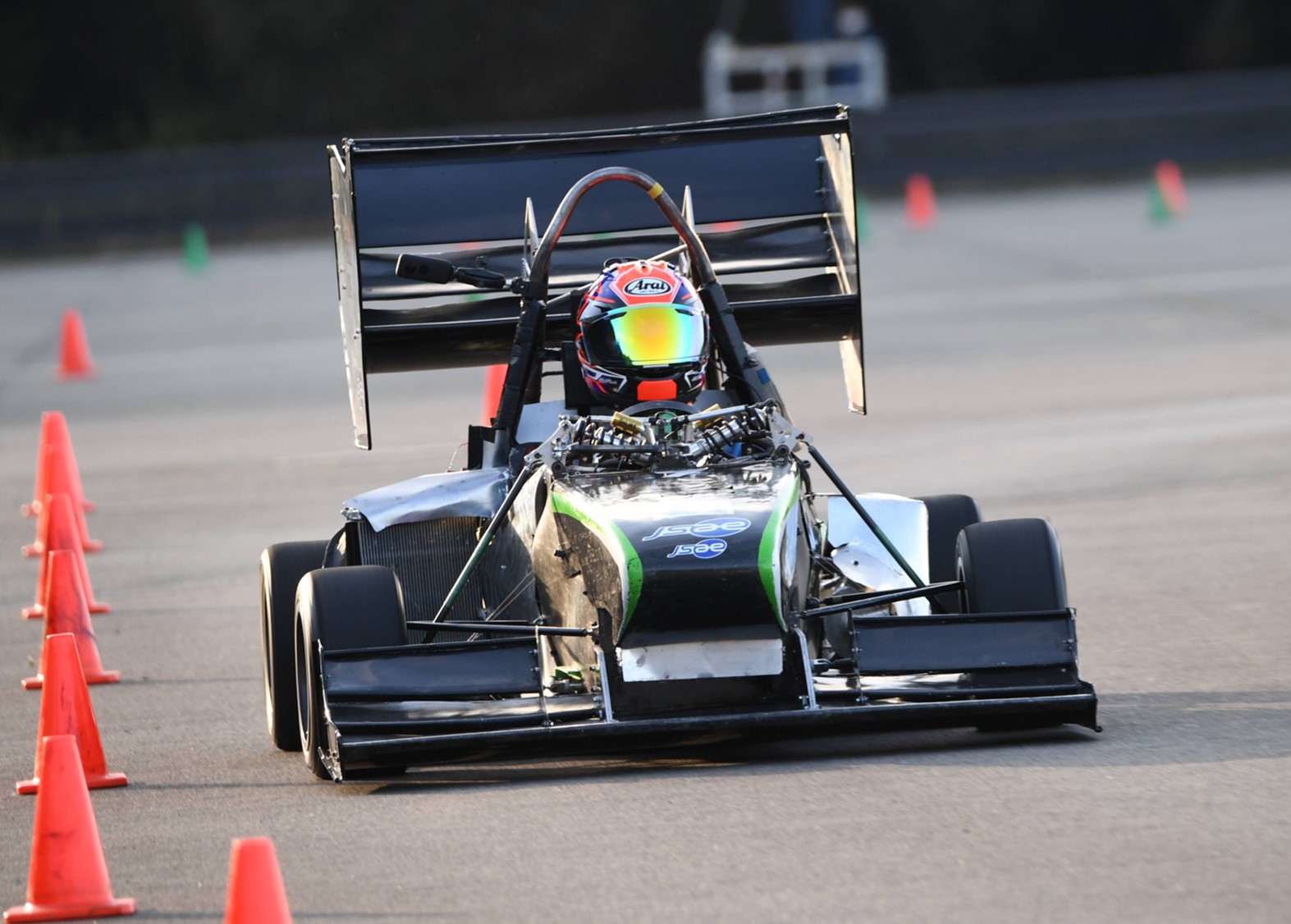

2019年度マシン

Dimensions
Overall L×W×H 2926 mm×1464 mm×1134 mm
Wheelbase 1575 mm
Track [front] 1270 mm
Track [rear] 1230 mm
Mass w/o driver 208 kg
Powertrain
Engine KAWASAKI ZX636E (636cc/inline 4)
Induction NA
MAX Power 76hp/11500RPM
MAX Torque 6.4kgm/8000RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 16.0×6.0-10,LC0,Hoosier
Tire sizes and Compound Type [rear] 16.0×6.0-10,LC0,Hoosier
Wheels [front] 7 inch wide, 1pc Mg Rim(OZ Racing), +22mm offset
Wheels [rear] 7 inch wide, 1pc Mg Rim(OZ Racing), +22mm offset
Features
Clutchless Shifting(Auto Blipping) with Electrical Throttle Control, Pneumatic Shifter, Center Lock Magnesium Wheels, CFRP Suspension Rods


2018年度マシン

Dimensions
Overall L×W×H 3285 mm×1580 mm×1170 mm
Wheelbase 1700 mm
Track [front] 1350 mm
Track [rear] 1300 mm
Mass w/o driver 230 kg
Powertrain
Engine KAWASAKI ZX636E (636cc/inline 4)
Induction NA
MAX Power 85hp/12500RPM
MAX Torque 6.5kgm/8000RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 18.0×7.5-10,R25B,Hoosier
Tire sizes and Compound Type [rear] 18.0×7.5-10,R25B,Hoosier
Wheels [front] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +1.1mm offset
Wheels [rear] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), -27.3mm offset
Features
Valiable Intake Control, Pneumatic Shifter


2017年度マシン

Dimensions
Overall L×W×H 3120 mm×1445 mm×1190 mm
Wheelbase 1620 mm
Track [front] 1250 mm
Track [rear] 1200 mm
Mass w/o driver 235 kg
Powertrain
Engine KAWASAKI ZX636E (636cc/inline 4)
Induction NA
MAX Power 86hp/12500RPM
MAX Torque 6.4kgm/8000RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 18.0×7.5-10,R25B,Hoosier
Tire sizes and Compound Type [rear] 18.0×7.5-10,R25B,Hoosier
Wheels [front] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +1.1mm offset
Wheels [rear] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), -27.3mm offset
Features
Valiable Intake Control, Pneumatic Shifter, Semi Unsprung Mount Wing

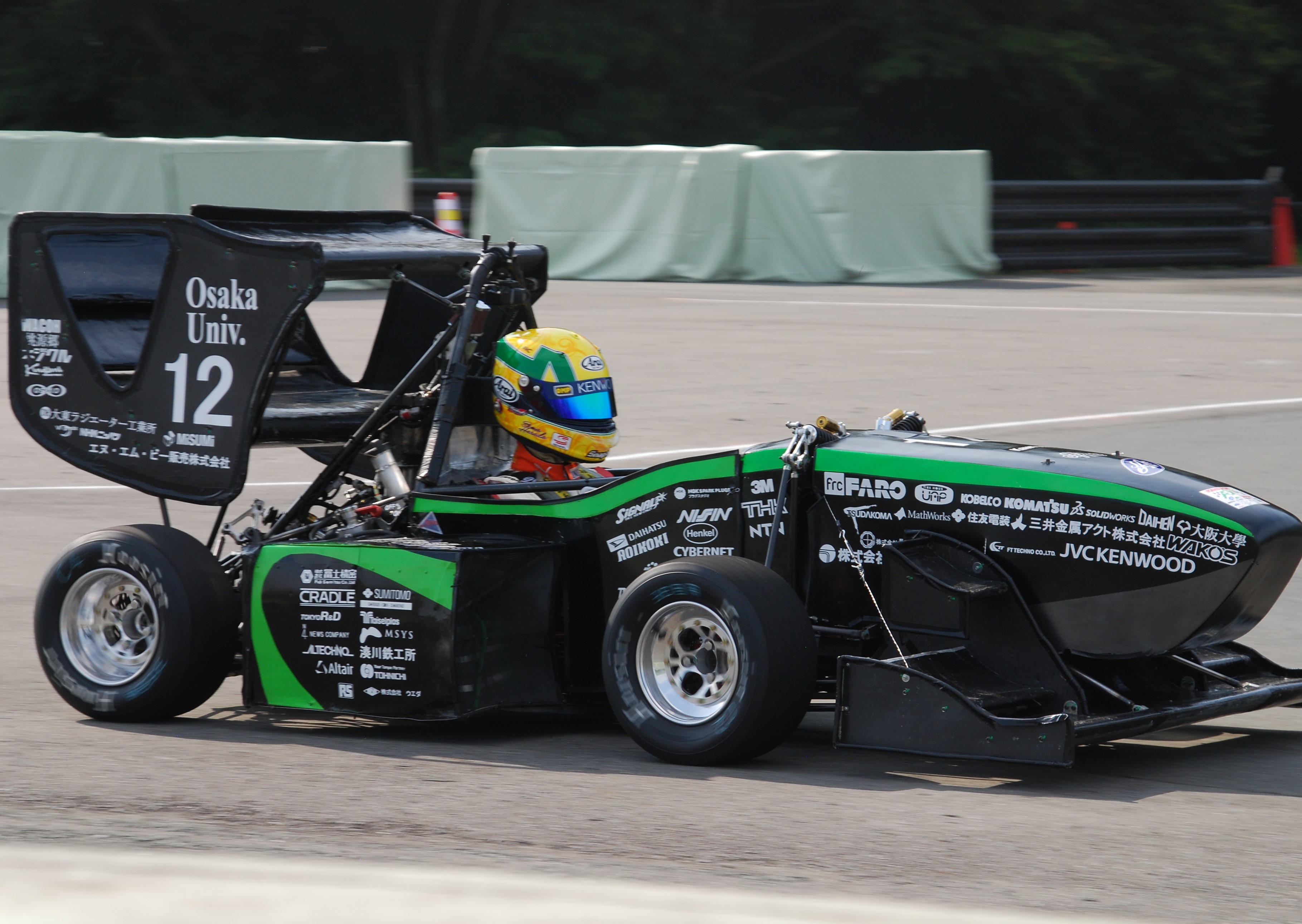

2016年度マシン

Dimensions
Overall L×W×H 3000 mm×1225 mm×1190 mm
Wheelbase 1620 mm
Track [front] 1225 mm
Track [rear] 1175 mm
Mass w/o driver 220 kg
Powertrain
Engine KAWASAKI ZX6R9F (599cc/inline 4)
Induction NA
MAX Power 89hp/12000RPM
MAX Torque 6.5kgm/9000RPM
Supension
Suspension Type [front] Double wishbone/Pull rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 18.0×7.5-10,R25B,Hoosier
Tire sizes and Compound Type [rear] 18.0×7.5-10,R25B,Hoosier
Wheels [front] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +38.1mm offset
Wheels [rear] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +12.7mm offset
Features
Auto Clutch System, Pneumatic Shifter, 3D Shape Rear Wing


2015年度マシン

Dimensions
Overall L×W×H 2978 mm×1441 mm×1190 mm
Wheelbase 1590 mm
Track [front] 1250 mm
Track [rear] 1200 mm
Mass w/o driver 212 kg
Powertrain
Engine KAWASAKI ZX6R9F (599cc/inline 4)
Induction NA
MAX Power 89hp/11000RPM
MAX Torque 6.6kgm/9500RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 18.0×7.5-10,R25B,Hoosier
Tire sizes and Compound Type [rear] 18.0×7.5-10,R25B,Hoosier
Wheels [front] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +38.1mm offset
Wheels [rear] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +12.7mm offset
Features
Valiable Intake Control, Auto Clutch System, Pneumatic Shifter

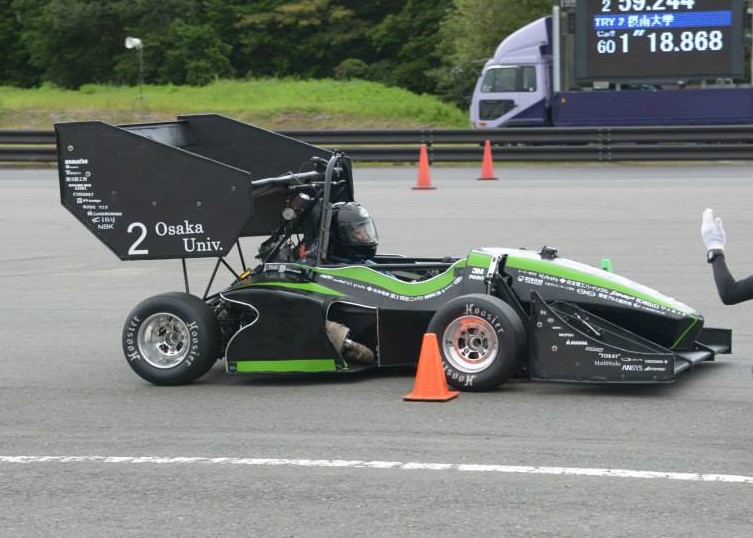

2014年度マシン

Dimensions
Overall L×W×H 3050 mm×1446 mm×1347 mm
Wheelbase 1590 mm
Track [front] 1225 mm
Track [rear] 1175 mm
Mass w/o driver 217 kg
Powertrain
Engine KAWASAKI ZX6R9F (599cc/inline 4)
Induction NA
MAX Power design RPM 11500
MAX Torque design RPM 9000
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 18.0×7.5-10,R25B,Hoosier
Tire sizes and Compound Type [rear] 18.0×7.5-10,R25B,Hoosier
Wheels [front] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +38.1mm offset
Wheels [rear] 7 inch wide, 3pc Al Rim(Keizer Rim & Original Spoke), +12.7mm offset
Features
Valiable Intake Control, Pneumatic Shifter, Drag Reduction System, Unsprung Mount Wing


2013年度マシン

Dimensions
Overall L×W×H 2847 mm×1405 mm×1270 mm
Wheelbase 1560 mm
Track [front] 1225 mm
Track [rear] 1175 mm
Mass w/o driver 221 kg
Powertrain
Engine KAWASAKI ZX6R9F (599cc/inline 4)
Induction NA
MAX Power design RPM 12000
MAX Torque design RPM 8500
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 20.5×7.0-13,R25B,Hoosier
Tire sizes and Compound Type [rear] 20.0×7.5-13,R25B,Hoosier
Wheels [front] 7 inch wide, 1pc forged Al Rim(OZ Racing), -22mm offset
Wheels [rear] 7 inch wide, 1pc forged Al Rim(OZ Racing), -22mm offset
Features
Valiable Intake Control, Pneumatic Shifter, CFRP Monocoque(Rear Section), Wings(first year)


2012年度マシン

Dimensions
Overall L×W×H 2690 mm×1420 mm×1095 mm
Wheelbase 1530 mm
Track [front] 1225 mm
Track [rear] 1180 mm
Mass w/o driver - kg
Powertrain
Engine KAWASAKI ZX600P7F (599cc/inline 4)
Induction NA
MAX Power design RPM -
MAX Torque design RPM -
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 20.5×7.0-13,R25B,Hoosier
Tire sizes and Compound Type [rear] 20.0×7.5-13,R25B,Hoosier
Wheels [front] 7 inch wide, 1pc forged Al Rim(OZ Racing), -22mm offset
Wheels [rear] 7 inch wide, 1pc forged Al Rim(OZ Racing), -22mm offset
Features
Valiable Intake Control, Valiable Surge Tank Capacity System, Pneumatic Shifter


2011年度マシン

Dimensions
Overall L×W×H 2770 mm×1380 mm×1140 mm
Wheelbase 1600 mm
Track [front] 1200 mm
Track [rear] 1200 mm
Mass w/o driver 215 kg
Powertrain
Engine KAWASAKI ZX600P7F (599cc/inline 4)
Induction NA
MAX Power 89hp/12500RPM
MAX Torque 6.6kgm/7000RPM
Supension
Suspension Type [front] Double wishbone/Pull rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] RAS 180/510-13 DR8,BRIDGESTONE
Tire sizes and Compound Type [rear] RAS 180/510-13 DR8,BRIDGESTONE
Wheels [front] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Wheels [rear] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Features
Valiable Intake Control


2010年度マシン

Dimensions
Overall L×W×H 2610 mm×1380 mm×1140 mm
Wheelbase 1600 mm
Track [front] 1200 mm
Track [rear] 1200 mm
Mass w/o driver 220 kg
Powertrain
Engine KAWASAKI ZX600P7F (599cc/inline 4)
Induction NA
MAX Power 89hp/12500RPM
MAX Torque 6.6kgm/9000RPM
Supension
Suspension Type [front] Double wishbone/Pull rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] RAS 180/510-13 DR8,BRIDGESTONE
Tire sizes and Compound Type [rear] RAS 180/510-13 DR8,BRIDGESTONE
Wheels [front] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Wheels [rear] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Features


2009年度マシン

Dimensions
Overall L×W×H 2760 mm×1380 mm×1150 mm
Wheelbase 1600 mm
Track [front] 1200 mm
Track [rear] 1200 mm
Mass w/o driver 230 kg
Powertrain
Engine KAWASAKI ZX600P7F (599cc/inline 4)
Induction NA
MAX Power design RPM 11500
MAX Torque design RPM 7500
Supension
Suspension Type [front] Double wishbone/Pull rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] RAS 180/510-13 DR8,BRIDGESTONE
Tire sizes and Compound Type [rear] RAS 180/510-13 DR8,BRIDGESTONE
Wheels [front] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Wheels [rear] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Features


2008年度マシン

Dimensions
Overall L×W×H 2810 mm×1380 mm×1150 mm
Wheelbase 1680 mm
Track [front] 1200 mm
Track [rear] 1200 mm
Mass w/o driver 225 kg
Powertrain
Engine KAWASAKI ZX600P7F (599cc/inline 4)
Induction NA
MAX Power design RPM 9500
MAX Torque design RPM 8000
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] RAS 180/510-13 DR8,BRIDGESTONE
Tire sizes and Compound Type [rear] RAS 180/510-13 DR8,BRIDGESTONE
Wheels [front] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Wheels [rear] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Features


2007年度マシン

Dimensions
Overall L×W×H 2900 mm×1400 mm×995 mm
Wheelbase 1680 mm
Track [front] 1200 mm
Track [rear] 1200 mm
Mass w/o driver - kg
Powertrain
Engine KAWASAKI KVF-650 CVT (609cc/V2)
Induction NA
MAX Power design RPM 4800
MAX Torque design RPM 4780
Supension
Suspension Type [front] Double wishbone/Pull rod
Suspension Type [rear] Double wishbone/Pull rod
Tire sizes and Compound Type [front] RAS 180/510-13 DR8,BRIDGESTONE
Tire sizes and Compound Type [rear] RAS 180/510-13 DR8,BRIDGESTONE
Wheels [front] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Wheels [rear] 13 inch wide, 1pc Al Rim(RAYS), -40.6mm offset
Features


2006年度マシン

Dimensions
Overall L×W×H 2600 mm×1375 mm×1075 mm
Wheelbase 1680 mm
Track [front] 1200 mm
Track [rear] 1200 mm
Mass w/o driver 236 kg
Powertrain
Engine KAWASAKI KVF-650 CVT (609cc/V2)
Induction NA
MAX Power design RPM 4800
MAX Torque design RPM 4780
Supension
Suspension Type [front] Double wishbone/Pull rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 20.0×7.5-13,R25A,Hoosier
Tire sizes and Compound Type [rear] 20.0×7.5-13,R25A,Hoosier
Wheels [front] 13 inch 5.5J, 1pc Al Rim(RAYS VOLKRACING), +45mm offset
Wheels [rear] 13 inch 5.5J, 1pc Al Rim(RAYS VOLKRACING), +45mm offset
Features


2005年度マシン

Dimensions
Overall L×W×H 2415 mm×1375 mm×1225 mm
Wheelbase 1700 mm
Track [front] 1200 mm
Track [rear] 1200 mm
Mass w/o driver 235 kg
Powertrain
Engine KAWASAKI KVF-650 CVT (609cc/V2)
Induction NA
MAX Power 30hp/4000RPM
MAX Torque 6.5kgm/3500RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Push rod
Tire sizes and Compound Type [front] 180/510 R13, BRIDGESTONE
Tire sizes and Compound Type [rear] 180/510 R13, BRIDGESTONE
Wheels [front] 13 inch 5.5J, 1pc Al Rim(RAYS VOLKRACING), +45mm offset
Wheels [rear] 13 inch 5.5J, 1pc Al Rim(RAYS VOLKRACING), +45mm offset
Features


2004年度マシン

Dimensions
Overall L×W×H 3050 mm×1200 mm×1170 mm
Wheelbase 1700 mm
Track [front] 1200 mm
Track [rear] 1190 mm
Mass w/o driver 370 kg
Powertrain
Engine KAWASAKI KVF-650 CVT (609cc/V2)
Induction NA
MAX Power 43hp/6500RPM
MAX Torque 5.4kgm/5000RPM
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/?
Tire sizes and Compound Type [front] 175×60×13 GGG
Tire sizes and Compound Type [rear] 175×60×13 GGG
Wheels [front] 13 inch wide, 1pc Al Rim, -40mm offset
Wheels [rear] 13 inch wide, 1pc Al Rim, -40mm offset
Features


2003年度マシン

Dimensions
Overall L×W×H - mm×- mm×- mm
Wheelbase - mm
Track [front] - mm
Track [rear] - mm
Mass w/o driver - kg
Powertrain
Engine KAWASAKI KVF-650 CVT (609cc/V2)?
Induction NA
MAX Power -
MAX Torque -
Supension
Suspension Type [front] Double wishbone/Push rod
Suspension Type [rear] Double wishbone/Pushrod
Tire sizes and Compound Type [front] -
Tire sizes and Compound Type [rear] -
Wheels [front] -
Wheels [rear] -
Features
